Material：SKH51

Tolerance: ±0.02mm

Description: A steel plate punching mold is a specialized tool used in the manufacturing process to create holes, slots, or other shapes in steel plates. It is made from high-quality steel, known for its durability, hardness, and resistance to wear and tear, ensuring long-lasting performance and precision.

All orders are shipped by Air freight or sea freight, either using your shipping account or ours. Delivery normally takes 15 to 20 business days.

Product details description：

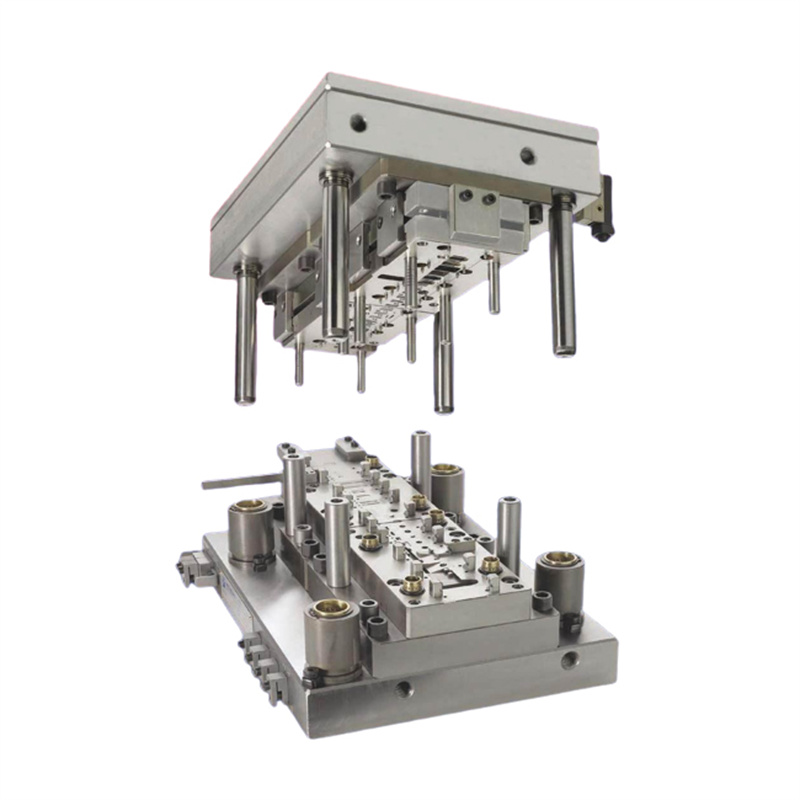

The punching mold consists of multiple components, including the upper die, lower die, and guide pins. The upper die houses the punches that create the desired shape, while the lower die provides support for the steel plate during the punching process. Guide pins ensure proper alignment and accurate positioning of the steel plate.

The steel plate punching mold is designed to meet specific requirements, such as hole size, shape, and spacing. The mold's design takes into account factors like material thickness, tensile strength, and the desired accuracy of the punched holes.

During the punching process, the steel plate is securely positioned between the upper and lower dies. The upper die descends, and the punches exert force on the steel plate, creating precise holes or shapes according to the mold design. The punches are shaped to match the desired hole geometry, whether it's round, square, rectangular, or customized.

Steel plate punching molds are commonly used in industries such as construction, metal fabrication, automotive, and electronics. They are particularly suitable for applications that require precise hole patterns, such as metal panels, brackets, enclosures, and structural components.

The use of high-quality steel in the punching mold ensures durability and resistance to deformation, even when subjected to high forces during the punching process. The hardness of the steel allows for repeated use without compromising accuracy or performance.

Steel plate punching molds offer several advantages, including high production efficiency, cost-effectiveness, and the ability to create complex patterns or combinations of holes. They provide precise and consistent results, enabling manufacturers to meet strict tolerances and achieve the desired functionality and aesthetics in punched steel plates.

By utilizing a steel plate punching mold, manufacturers can streamline their production processes, increase productivity, and ensure the accurate and efficient creation of holes or shapes in steel plates. The mold's durability, precision, and versatility make it an essential tool in the metalworking industry.
