Material：PPSU

Process：Vacuum Casting

Tolerance: ±0.02mm

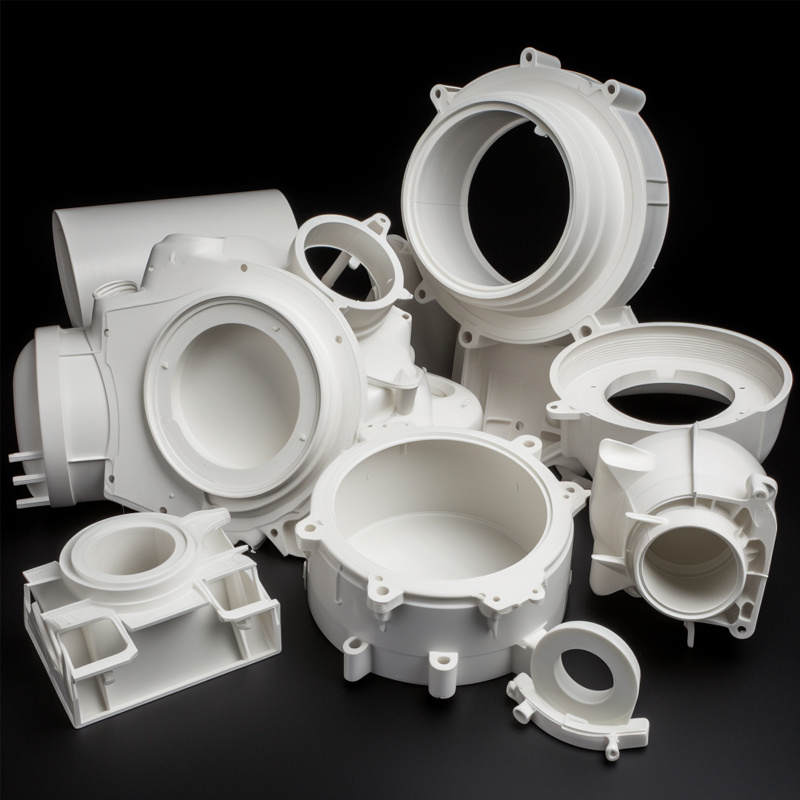

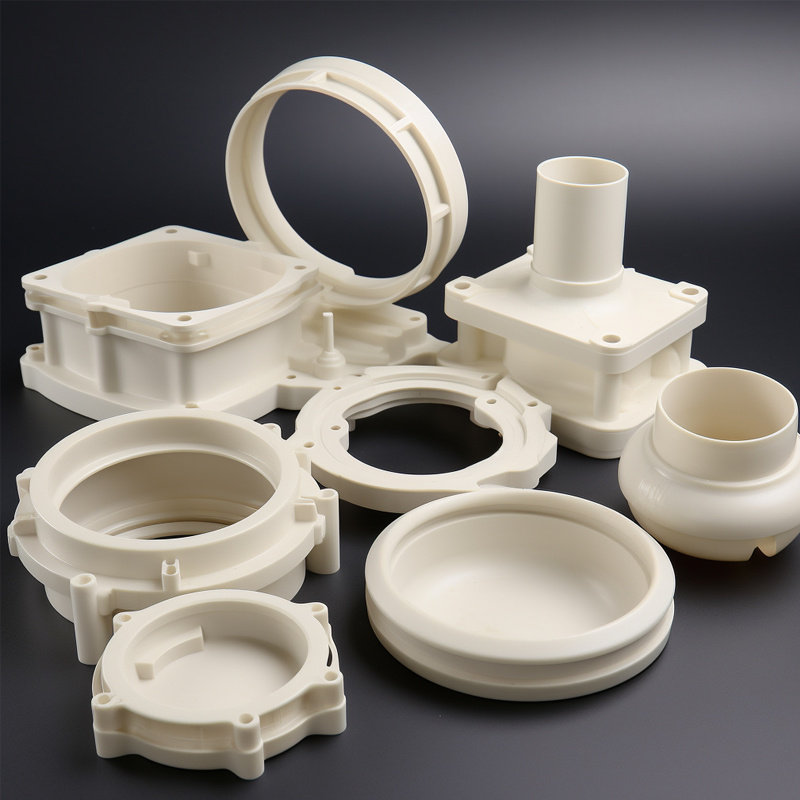

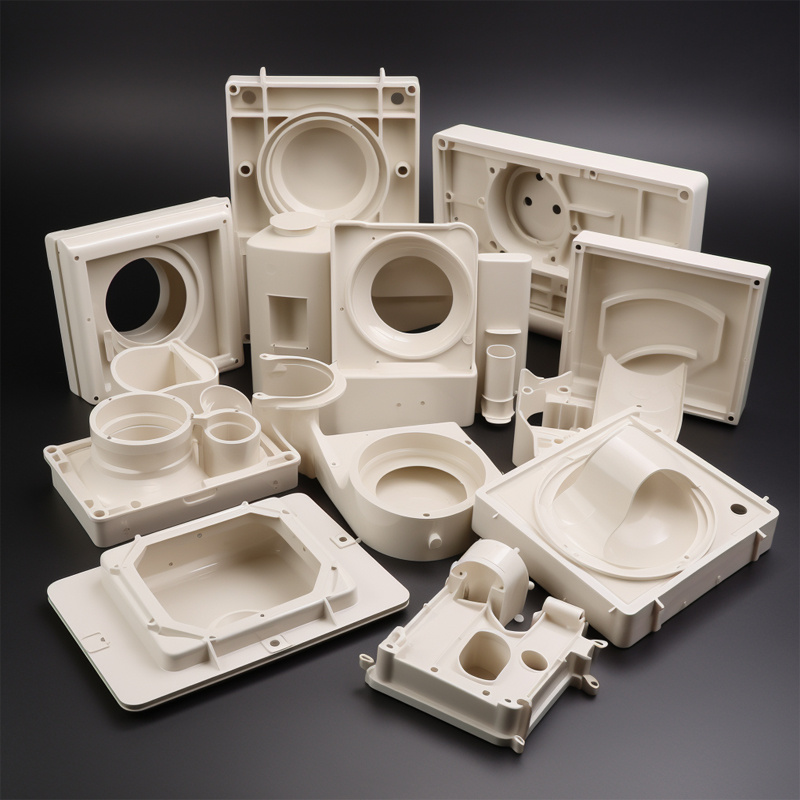

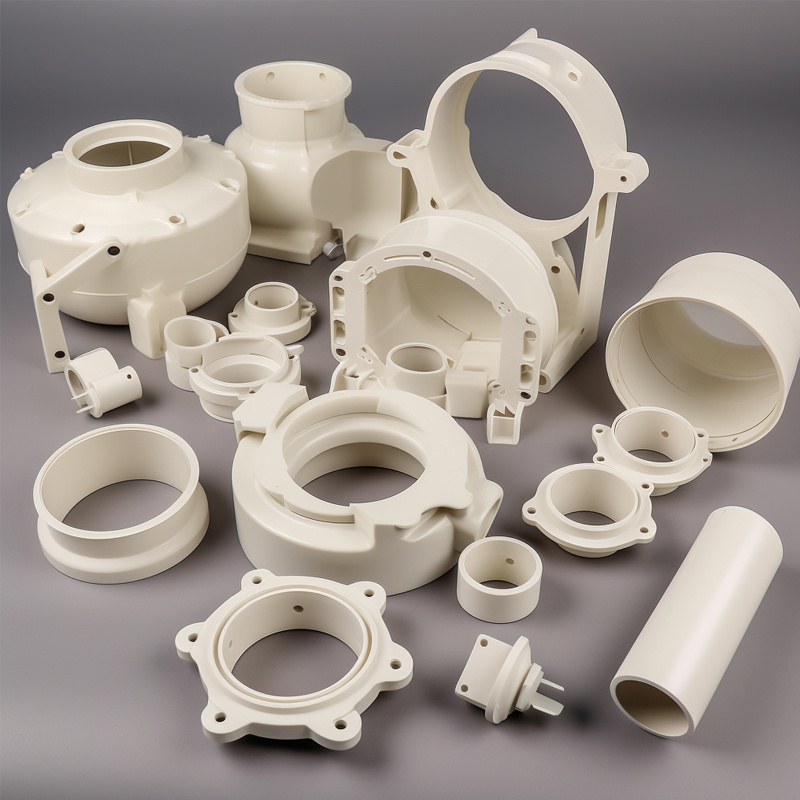

Description: Designed for aerospace and medical equipment applications, these high-temperature PPSU plastic vacuum casting components are manufactured using the vacuum casting process. The material used is PPSU plastic, known for its outstanding heat resistance and chemical stability. The tolerance is controlled within ±0.02mm to meet stringent assembly requirements.

All orders are shipped by DHL,UPS,or FedEx, either using your shipping account or ours. Delivery normally takes 3 to 4 business days.

Product details description：

PPSU plastic vacuum casting is a manufacturing process used to produce high-quality, functional prototypes or low-volume production components using Polyphenylsulfone (PPSU) plastic material. This process involves creating a silicone mold from a master pattern and then injecting liquid PPSU resin into the mold under vacuum conditions to achieve precise and detailed replicas.

The PPSU plastic vacuum casting process begins with the fabrication of a master pattern. The master pattern is typically created using techniques such as CNC machining or 3D printing and serves as the basis for creating the silicone mold. The master pattern is designed with high precision to ensure accurate replication of the desired part geometry.

Next, a silicone mold is created by pouring liquid silicone rubber around the master pattern. Once the silicone rubber cures, it forms a flexible mold that captures all the intricate details of the master pattern. The mold is carefully cut and separated to remove the master pattern, leaving behind a cavity that matches the desired part geometry.

The liquid PPSU resin is prepared by mixing the PPSU material with a curing agent or catalyst. The mixture is degassed to remove any trapped air bubbles that could affect the quality of the cast components. The prepared resin is poured into the silicone mold, and a vacuum chamber is used to remove any remaining air, ensuring complete and consistent resin infiltration.

The mold is then placed in an oven or heated chamber, where the PPSU resin cures and solidifies. Once fully cured, the mold is cooled, and the solidified PPSU component is removed from the mold. The component may undergo additional post-processing steps, such as trimming, sanding, or surface finishing, to achieve the desired final appearance and functionality.

PPSU plastic vacuum casting offers several advantages. Firstly, it allows for the production of high-quality components with complex geometries. The silicone molds faithfully replicate the intricate features and surface textures of the master pattern, resulting in components that closely resemble the intended design.

Secondly, PPSU plastic is a high-performance material with excellent mechanical and thermal properties. It exhibits exceptional strength, toughness, and resistance to chemicals and high temperatures. PPSU components can withstand demanding environments and maintain their integrity under various operating conditions.

Furthermore, PPSU plastic vacuum casting enables the production of small to medium quantities of components economically. The silicone molds can be used multiple times, allowing for efficient production without the need for costly tooling or equipment associated with traditional manufacturing methods.

Additionally, PPSU plastic components can be easily sterilized, making them suitable for applications in the medical and healthcare industries. PPSU is biocompatible and resistant to steam autoclaving, ensuring the highest standards of cleanliness and hygiene.

By utilizing PPSU plastic vacuum casting, you can benefit from the production of high-quality prototypes or low-volume production components that exhibit accurate replication, mechanical strength, and resistance to harsh environments. It is a cost-effective and efficient manufacturing process suitable for various industries, including aerospace, medical, automotive, and industrial applications.
